Mini Handheld Digital Multimeter 10A DC Current Measurement Data Hold Meter

Brand Name : PEAKMETER

Model Number : PM8233B

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T

Supply Ability : 150,000 Pcs Per Month

Delivery Time : 5-40 work days

Packaging Details : Product Size 148mm*74mm*42mm Product Weight Approx. 173g

Voltage : AC/DC 600V

Function 1 : Backlight

Display : 2000 counts

Function 2 : Auto Power Off

Resistance : 200Ω~2MΩ

Product Name : Mini Handheld Digital Multimeter

Contact Now

Mini Handheld Digital Multimeter 10A DC Current measurement Data Hold Meter

Features of Mini Handheld Digital Multimeter

  • Fuse protection: F 250mA/250V 10A/250V
  • Measuring method: Dual-slop integration A/D converter
  • Measuring AC/DC Voltage
  • Measuring DC Current
  • Diode and Continuity Test

Specifications Range Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.5%+2)
600V ±(0.8%+2)
AC Voltage 200V/600V ±(1.2%+10)
DC Current 200µA/2mA/20mA ±(1.0%+2)
200mA ±(1.5%+2)
10A ±(3.0%+2)
Resistance 200Ω/2kΩ/20kΩ/200kΩ ±(0.8%+2)
2MΩ ±(1.0%+2)
Features
Display 2000 counts
Data Hold √
Auto Power Off √
Diode Test √
Backlight √
Continuity √
General

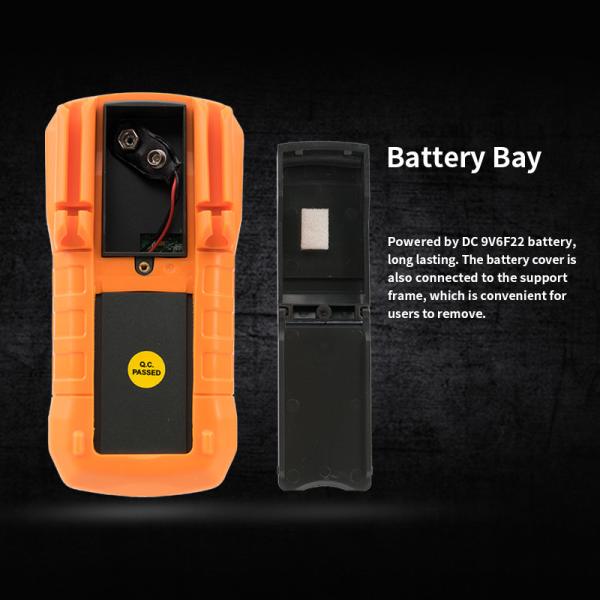

Power Supply DC 9V6F22 battery
Net weight Approx.173g(battery is not included)
Gross weight 318g
Size 148mm*74mm*42mm
Safety Rating EN61010-1, 61010-2-033, EN61326, CAT. Ⅲ 600V

Description of Mini Handheld Digital Multimeter

PM8233B is a small handheld digital multimeter. It is a 31/2-digit, 15mm character height, 7-segment LCD display. The backlight design enables users to read data normally even in dark environments. The meter is small but feature-rich, measuring AC and DC voltage, DC current, resistance, and performing diode and continuity tests. It has a novel structure and a pen slot on the back. This is a measuring instrument worth having.
